Plastic Tactile Indicator Stud Hybrid Hazard

Plastic Tactile Indicator Stud Hybrid

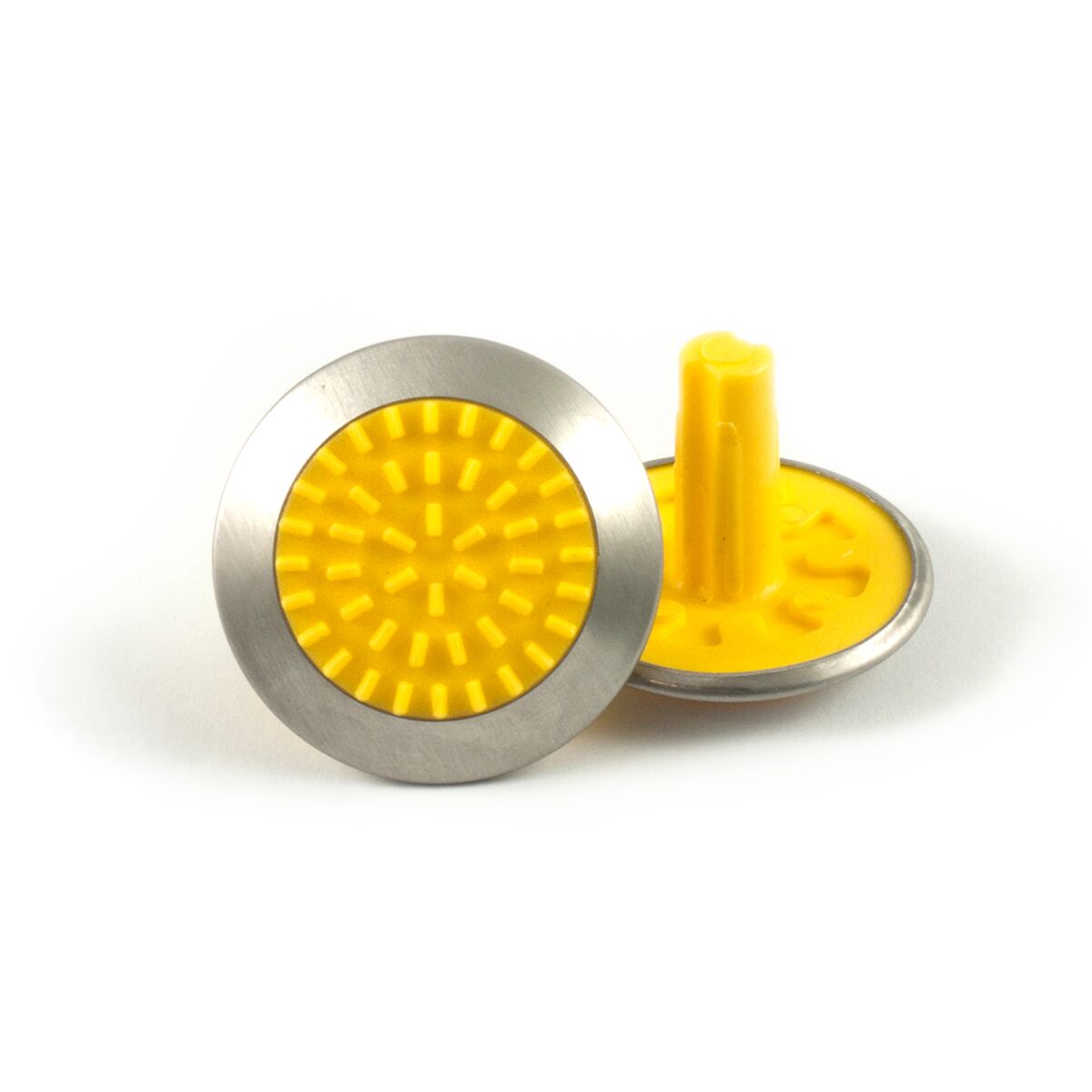

Stainless Steel Tactile Stud with UV stable polymer
35mm diameter,  5mm height (AS1428.4 compliant)
Market leading P5 Slip Resistance Rating (AS4586 compliant)

Manufactured from a UV stable polymer with a brushed stainless steel cap. Designed to comply with all elements of AS1428.4 – Design for access and mobility.

Easy installation using a AS1428 compliant drilling template and a 8mm drill bit suitable for the substrate. Once the holes are drilled, it’s a simple case of vacuuming the holes and hammering in the studs. No adhesive required, resulting in a cheaper, cleaner and environmentally friendly installation which can be walking over immediately. Full installation instruction are available after purchase.

To comply with AS1428.4, this product requires a 60% contrast to the underlying substrate.

How many studs do I need?

• 300 x 600mm | 72
• 600 x 600mm | 144
• 600 x 900mm | 216
• 600 x 1200mm | 288
• 1000 x 1000mm (1 sq/m)| 400

Suitable Substrates

• Concrete, Ceramic, Timber, Stone, Steel, Exposed Aggregate

See also 8mm spigot tactile installation template
